THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
The Cornerstone is the #1 selling luxury diesel model in the Cummins® 605HP
engine category and offers timeless features and residential touches in every single detail.
Built on the innovative SL from Freightliner Custom Chassis (FCCC), the Cornerstone drives like a dream with state-of-the-art standard features.
Entegra Cornerstone now built on FCCC’s innovative SL Chassis.
Watch the video.
Cornerstone Standard Features
Cummins 605HP & 20,000 lb. Towing Capacity
Cummins X15 features 1,950 lb.-ft. of torque–
capable of generating the power needed to tow up to 20,000 lbs.
RoadWatch® Safety Suite
FCCC’s high-tech ACTIVE safety system features: Roll Stability, Traction Control, Collision Mitigation and Adaptive Cruise Control–all fully integrated with Optiview, FCCC’s exclusive digital gauge display.

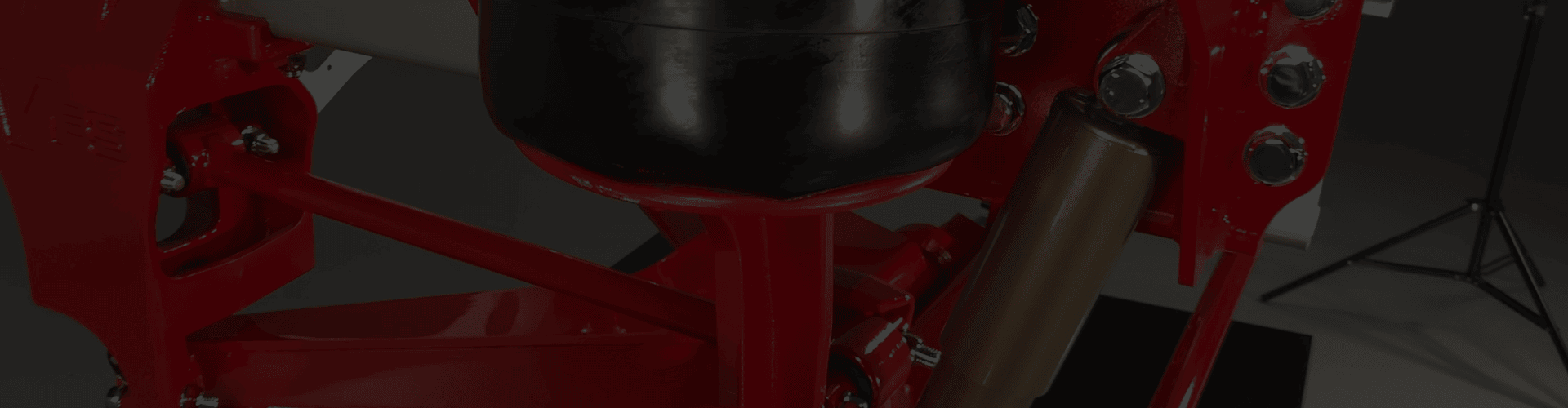

Enhanced Handling: IFS + VRide
Cornerstone’s SL chassis features an independent front suspension for sharper turning and better handling. The V-Ride rear suspension is rated at 20,000 lbs., increasing luxury amenity and cargo capacity while greatly reducing body roll.
Ultrasteer
Precision-tuned tag axles follow the ideal turning path, eliminating tire scrub and reducing curb-to-curb turning radius by up to 17%.
Safe View Dash featuring Optiview
The Safe View Dash provides a modern, heads-up design including Optiview, FCCC’s exclusive 15” digital dash, and a 15” center console— all positioned within the driver’s line of sight.
BrakeSync
BrakeSync is a fully integrated air supply for tow vehicles, developed exclusively for the RV industry; factory-installed and factory-warranted.
DriveTech™ Advanced Display and Control System
DriveTech™ Advanced Display and Control System DriveTech’s ergonomic steering wheel and column-mounted controls eliminate the need to reach for every command, enabling you to keep your head up and your hands on the wheel. This is the only driving system in the industry that places transmission controls at your fingertips.
5 year/100,000 mile warranty
The SL chassis comes with an industry-leading 5-year/100,000 mile warranty— a higher standard of coverage and confidence.
FCCC is the only chassis manufacturer to offer 24/7/365 factory-direct support for the life of your coach—what we call My 24/7 Direct. That means you have around-the-clock access to FCCC personnel averaging 18 years’ experience. Simply call 800-FTL-HELP.
Put that power in your pocket with our exclusive My 24/7 Direct app featuring My Maintenance, helping you care for your chassis and maximize your owner experience. Access dash light descriptions, service checklists, owner and maintenance manuals, FAQs and more.
Service Network
450+ LOCATIONS IN US & CANADA
Freightliner chassis are backed by more than 450 Freightliner-branded service locations, including Oasis Network dealers specializing in RV service.
At Freightliner Custom Chassis, we understand there is a lot of information floating around the internet about flat towing a car with your motorhome. We put together the following to help simplify terminology, help owners of coaches powered by FCCC chassis find clarity in their towing calculations, and ultimately build their confidence when towing with their coach. We hope you’ll find it helpful.
Towing Capacity Calculation
Safety Check: Confirm tow capacity is less than or equal to Tow Hitch Rating.
Flat Towing with Your Coach
The most common tow solution is flat towing. Flat towing is towing a vehicle with all four tires positioned on the ground, rather than elevating the front two wheels on a tow dolly. When flat towing, a vehicle tow bar connects to the front of the tow vehicle and is pulled from behind the RV. The following calculations are intended for those flat towing with their motorhome.
Important Flat Towing Terms
Before we calculate your towing capacity, let’s quickly define a few terms we’ll be using.
Flat Towing
Towing a vehicle with all four wheels on the ground. The most common tow solution is flat towing. Flat towing is towing a vehicle with all four tires positioned on the ground, rather than elevating the front two wheels on a tow dolly or pulling a car on a trailer. When flat towing a vehicle, a tow bar connects to the front of the tow vehicle and is pulled behind the RV.
GVWR (Gross Vehicle Weight Rating)
This is the maximum loaded weight under which a vehicle can safely operate when weighing your coach with passengers, fuel and fluids, optional accessories and equipment, cargo, and the “tongue weight” of a tow trailer. This maximum weight is set by the manufacturer.
Actual Weight (Travel Weight)
The total weight of your loaded coach, including passengers, fuel and fluids, optional accessories and equipment, and cargo.
GAWR (Gross Axle Weight Rating)
This is the maximum allowable weight for one axle of your coach. Each axle on your coach has its own GAWR, and this weight must not be exceeded when you load your coach, or it will be considered unsafe.
GCWR (Gross Combination Weight Rating)
This is the total potential weight rating for a fully loaded coach combined with the weight of the tow vehicle.
Tow Hitch Rating
The tow hitch manufacturer’s weight rating for the tow bar hitch itself. This is the maximum amount the coach could tow if the calculated towing capacity is available. This rating is for the tow bar only and does not take into account actual GCWR, so it may not be an accurate representation of how much your specific coach can tow.
OEM
Original Equipment Manufacturer.
How much can you flat tow?
Your towing capacity is the weight your coach can tow when loaded and ready for travel. This means you will need to weigh your coach loaded, as you plan to travel: have at least 75% fuel in the tank; if you travel with water tanks full, fill them; and add all your camping cargo. To calculate your coach’s maximum towing capacity, you need to know:
The GCWR of your coach. This number is provided by your OEM on the interior decal.
The actual weight of your coach. You can obtain this by weighing your coach with all cargo and items you plan on traveling with.
The hitch rating. This number is available on the hitch and is provided by either the OEM or FCCC.
To calculate maximum towing capacity, subtract the actual weight from the GCWR.
Example:
Total GCWR: 33,000 lbs
Actual weight: 25,842 lbs
GCWR – Actual Weight of Coach = Towing Capacity
33,000 lbs – 25,842 lbs = 7,158 lbs towing capacity*
*The calculated towing capacity can be no higher than the rating of your hitch.
Safety Check:
Make sure the total actual weight of your coach does not exceed the Gross Vehicle Weight Rating (GVWR) or the Gross Axle Weight Rating (GAWR).
Estimating Average Towable Vehicle Weights
To tow your vehicle with your coach, your vehicle must weigh less than the towing capacity. If you don’t know the weight of your specific vehicle, it’s helpful to know that the average weight of a midsize SUV or truck is 4,259 lbs.*
The towing guidelines described above are for informational purposes only. It is not intended as a substitute for professional advice. Accordingly, Freightliner Custom Chassis Corp. and its affiliates disclaim any and all liability and responsibility for any damages, loss, or injury resulting from towing operations, miscalculations, wiring of tow vehicles, or any other use or misuse of these guidelines.
INTRODUCING TIFFINS PHAETON 40 IH
NOW AVAILABLE ON FCCCS XCR SUPER RAISED RAIL CHASSIS
Gaffney, South Carolina and Red Bay, Alabama share more than a rich southern heritage and strong work ethic. They are the birthplace of Tiffins Phaeton IH and Freightliners XC-series chassis. For years, these two have built a following of loyal fans who demand the most from the RV experience. That RV experience has arrived.
Tiffins Phaeton 40 IH is now available on FCCCs new XCR Super Raised Rail chassis. This combination is built to deliver popular amenities and best-in-class storage, along with a stress-free automotive driving experience.
The XC chassis offers Cummins engine options capable of generating up to 450 HP and 1250 lbft torque, giving the Phaeton 40 IH the power
to handle challenging grades and greater towing capacity without sacrificing fuel economy.
Rated at 24,000 pounds, Freightliners V-Ride gives luxury RV owners the freedom to choose more luxury amenities and carry more cargo. It also provides superior roll stability, a smoother ride and more predictable handling in any driving conditions.
Roadwatch, equipped with the Mobileye Camera System,gives the driver confident control on any road, in any conditions. Electronic Stability Control (ESC), Roll Stability Control (RSC) and Collision Mitigation maintain superior handling. Adaptive Cruise Control (ACC) and Automatic Traction Control (ATC) make the longest journeys seem effortless.
ZF Independent Front Suspension (IFS) with 60 Wheel Cut means easier maneuverability, less backing up and a more confident driving experience.
DriveTechs column-mounted controls put the driver completely in command. Engine and brake controls on the right column replace distracting touchpad operation, while the left column provides fingertip access to wiper, headlight and signal controls. With the addition of an ergonomically designed steering wheel, integrated OptiView LED instrument cluster and tire pressure monitoring, DriveTech creates a driver-friendly automotive experience.
FLAT FLOOR
With the tallest rail configuration in the industry, the XCR Super Raised Rail chassis delivers maximum basement storage and a flat coach floor from end to end.
The design of the XCR Super Raised Rail chassis works in tandem with the Phaeton 40 IH floorplan to create even more basement storage space and easy cargo access.
CONFIDENCE COMES STANDARD.
Freightliners XC chassis is backed by more than 450 Freightliner-branded service locations, including Oasis Network dealers specifically designed to service RVs. The 24/7 Direct mobile app provides factory-direct concierge service, connecting RV owners with experienced factory service advisors, maintenance information and more for the life of the RV.
The all-new Allegro Bay packs luxury amenities, diesel power and a spirit for adventure into a rugged Super-C class coach. Freightliner Custom Chassis’ revolutionary S2RV chassis, the first front-engine diesel chassis designed and built exclusively for the RV market, makes the perfect foundation for a spacious, well-appointed interior. If youre ready for adventure, theres an adventure-ready coach waiting for you the Allegro Bay.
Red Bay, Alabama and Gaffney, South Carolina may be hundreds of miles apart, but they are bound by a rich southern heritage, a strong work ethic and legacies of excellence. Red Bay is the home of Tiffin Motorhomes. Gaffney is the home of Freightliner Custom Chassis. For years, these proud names have built a following of loyal fans who demand more from their RV experience.
Now, these two legends have joined forces to build a distinctly superior RV experience. Built on Freightliners exclusive S2RV chassis, the all-new Allegro Bay blends generous luxury with rugged durability and performance.
Allegro Bay Features
The S2RVs large windshield and ergonomic dash design maximize driver line of sight and reduce blind spots. A premium noise abatement and insulation package keeps road noise at a minimum.
Cummins B6.7 delivers quiet, clean power and 800 lbs/ft torque at 1800 RPM, giving the Allegro Bay impressive towing capacity and high performance on even the steepest grades.
The Allegro Bay S2RV features TracTech – full-time traction control with no-spin differential, eliminating wheel-spin in wet, snowy and muddy conditions.
The ingenious, no-maintenance AirLiner air ride suspension works in concert with custom-tuned Sachs shocks to tame rough roads for complete comfort, mile after mile.
All tanks are equipped with automatic drain valves with heaters to eliminate the need to manually pull drain cords, and prevent drain water from freezing.
A convenient manual dump valve for the rear suspension provides the freedom to dump all, some, or none of the air, for complete control when hitching or unhitching a trailer.
LED headlights generate a wider, longer beam path for maximum nighttime visibility. They are also virtually maintenance-free and last up to 50x longer than traditional halogen bulbs.
CONFIDENCE COMES STANDARD.
Freightliners chassis is backed by more than 450 Freightliner-branded service locations, including Oasis Network dealers specifically designed to service RVs. The 24/7 Direct mobile app provides factory-direct concierge service, connecting RV owners with experienced factory service advisors, maintenance information and more for the life of the RV.
